Technical specifications:

download the Atmos booklet in pdf format

FAQ's





  • dimensions ext: 340 x 335 x 525 mm
  • dimensions int: 230 x 275 x 325 mm
  • Int volume: 20 litres
  • Weight 19 Kg
  • Voltage: 230 V/ 50 Hz or 120 V/60 Hz
  • Temperature range: 5°C above RT up to 40 (optional up to 60°C available)
  • Temperature accuracy: +/- 0,5°C, microprocessor controlled
  • CO2 range: 0-25% infrared measurement microprocessor controlled
  • std.preset: 5%
  • Flow rate: 0-20ml / min., microprocessor controlled
  • CO2 recovery: 1min. after 10s. door opening
  • CO2 accuracy: +/-0,50%

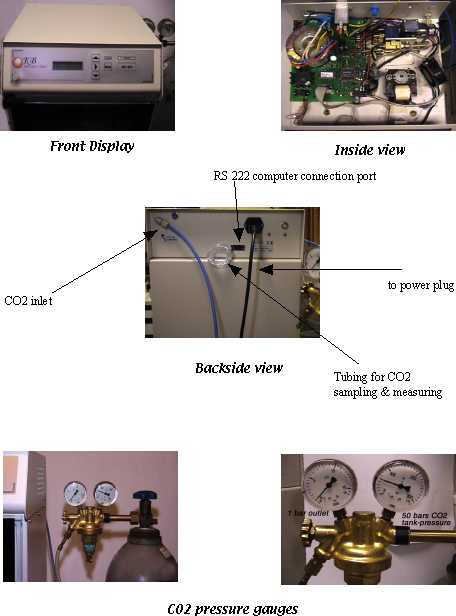

  • Gas source: 99.9% pure CO2 for medical useclick to get illustrations
  • Int. atmosphere sampling: possible through connection device allowing ext. CO2 measurement / control click to get illustrations
  • Safety features: Atmos conforms to CE -requirements
Order specifications:

TI 001 :			TI v.01 Atmos 230 V / 50 Hz incl. 2 stainless steel shelves
TI 002 :			TI v.02 Atmos 130 V/ 60 Hz incl. 2 stainless steel shelves
TI 003 : 		        Stainless steel shelves
TI 004 : 			RS 232 Interface
TI 005 : 			Max.Tp. Set, up to 60 °C
